AFT profile system

WINDOW AND DOOR aluminum system AFT45 is a cold aluminum system with an installation depth of 45 mm.
Millstandard profile color RAL 9016 (white); RAL 9006 (silver anodised); painting according to RAL scale is possible.

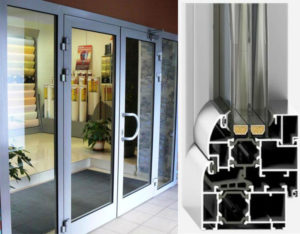

WINDOW AND DOOR aluminum system AFT 70 is a warm aluminum system with an installation depth of 70 mm.
The system is used to create warm structures that need

maximum thermal and sound insulation. This system is characterized by the presence of a thermal insert, which separates the outer and inner walls of the profile, which in turn prevents heat loss. At the same time, with sufficiently high heat-insulating properties, a warm aluminum profile makes it possible to manufacture large-sized structures that are resistant to external influences and corrosion, and to long and intensive operation.
Standard profile color RAL 9016 (white), RAL 9006 (silver anodised); painting according to RAL scale is possible.

The AFT 50 profile system is a classic post-transom facade system designed to create modern translucent facades of any level of complexity. The combination of aluminum frame and glass infill allows for a wide range of architectural solutions and colors.

The frame of the supporting structure is vertical posts and horizontal crossbars, represented by a wide range of profiles with a width of the end part of 50 mm. The system provides a different set of components, which allows you to create both rectilinear and curvilinear forms of facades. The range of rubber seals and thermal inserts provides for various options for filling: glass, double-glazed windows, sandwich and other types of materials with a thickness of 6 to 36 mm.

The system of office partitions, which is designed to organize the working space and the formation of various functional premises in order to create comfortable working conditions. The system allows you to create exquisite interiors in the halls, meeting rooms, offices, divide the halls in shopping centers.

The variety of individual solutions is achieved due to a wide choice of structural elements, options for texture and color design of the system. A wide field for design research is opened by unlimited combinations of glass and blind sections, tinted, frosted and decorative glass and various types of blinds. The richest choice of types, colors and textures for blind filling allows you to create a unique interior and decorate it in a unique style.

Features of the office partition system:

• the ability to produce partitions with single glazing up to 3.5 m high with a rack spacing of 1.2 m;
• the use of glass from 4 to 8 mm and blind fillings from 4 to 16 mm;
• the possibility of adjoining the partition to the wall without the use of flashings;
• the possibility of distributing power cables, telephone and computer networks directly inside the partition profile and installing sockets and switches on the profile on both sides of the structure;
• the possibility of manufacturing double-leaf aluminum doors;
• protection of glass from damage when snapping covers with a seal;
• the presence of leveling corners in the canvas of the frame and door leaf;
  4 standard colors: RAL9006 (metallic gray), RAL9016 (white), RAL8017 (brown), A00-E6 (silver).

Modern large-sized translucent structures that embody lightness, functionality, reliability and aesthetic beauty. Aluminum sliding systems are a successful combination of aluminum and monoglass or aluminum and double glazing.

The leaves of aluminum sliding systems, moving parallel in one plane, move one after the other when opening. Such a system assumes the possibility of installing a sliding structure from "ceiling to floor" and from "wall to wall". Sliding systems allow you to produce structures of large dimensions, this is their main advantage. Aluminum sliding structures can be painted in any of the colors according to the RAL scale, they can also have a different texture, imitating precious woods.

Cold sliding system.

It is used for glazing balconies, loggias, shopping windows, gazebos (summer houses), business centers, supermarkets or as interior or office partitions, in those rooms where thermal insulation is not the main criterion.
The cold balcony sliding system has an opening opening ½ of the structure.

Glazing is due to monoglass. The movement of the valves is carried out along two guides (rails). The number of valves varies from 2 to 6.
The sliding system of opening of shutters allows to use the useful area of the room as efficiently as possible. The design of the rollers allows you to adjust the height of the sash and ensures a smooth, silent ride. Dust brushes installed between the leaves provide protection from external influences and prevent rattling. Special sash movement limiters prevent the sash from falling out during gusts of wind. There is also a latch handle that locks the doors in the closed position. The system of drainage holes in the lower part of the frame ensures the removal of precipitation and protection against water ingress into the structure.
Main advantages:
The sashes move rather than swing open, which saves space significantly;
All sashes are movable, no matter how many there are, which provides easy access to any place in the structure.

It is installed as entrance doors in country houses, villas, in rooms of hotel and health complexes, elite educational institutions, clinics, terraces, verandas and even in swimming pools. Warm systems are distinguished by the presence of a thermal bridge, which retains heat in the premises.
Lift-sliding warm aluminum system, designed specifically for glazing huge window and door openings. Despite its large dimensions, the sash in the open position does not take up much space, because. moves to the side, while the lift-and-slide fittings provide silent and effortless opening, even considering the considerable weight.

They find application in airports, railway stations, shopping centers, supermarkets, banks, public buildings, hospitals, high security areas, any modern design solutions for entrance systems.
Sliding door systems offer functionality, high efficiency and safety that meet all the needs of consumers.
The econoMaster drive system represents a new generation of economical sliding door drives. The use of large rollers guarantees smooth movement and long service life. Even large doors with leaf weights of up to 80 kg open silently and quickly. The small drive height of 130 mm, as well as the use of elegant frame profile systems, add an elegant appearance to the high functionality of any entrance to the building. The econoMaster drive system, thanks to its design, fits seamlessly into the architecture of any building.
